 Compliant with JIS, IEC, Bellcore
Designed Φ0.9, Φ2.0, Φ2.4, Φ3.0mm buffer cable
physical contact PC polishing
Convenient push-pull design
Low insertion loss

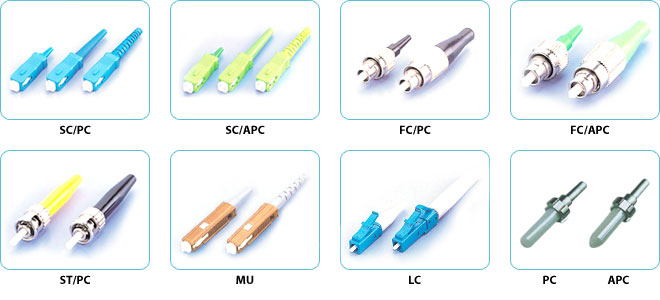

Available for multi mode and single mode various
connector type available
High reflection
Custom lengths available
Competitive price
|
|
Telecommunication networks
Instrumentation
LAN/WAN
Data transmission
CATV
Active device termination
|
|
|
 |
| TEST ITEM |
TEST CONDITION |
RESULT |
| Optical Characteristics |
Insertion Loss |
Light source 1.3㎛, 1.5㎛(LED) |
<0.2dB |
| Mechanical Performance |
Vibration
Impact
Burability |
10~55Hz, 1.5㎛ Amplitude 3 Directions, 2Hr each
1.5m Drop, 8 Times
More than 1,000 Times |
<0.2dB
<0.2dB
<0.2dB |
| Environmental Performance |
Temperature Cycle
Thermal Aging
Humidity Cycle |
-40℃~ +80℃ 10 Cycles
+85℃, 960 Hours
+40℃, 95% RH, 240 Hours |
<0.2dB
<0.2dB
<0.2dB |
|
|
 |
|
|
