 Low insertion loss
Low back-reflection
Easy installation
Custom defined specifications
4,6,8,12 Cable also available
Telecommunication network
Data communication network
CATV/LAN
Test equipment
Testing instrumentation
Fiber optic sensors
|
|
|
 |
| TEST ITEM |
SPECIFICATION |
REMARKS |

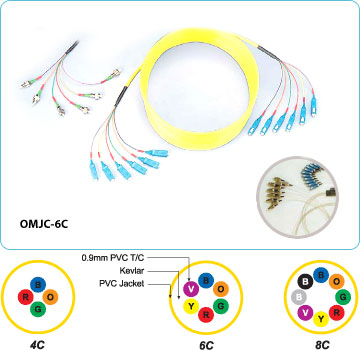

| Outer Jacket |
4.6mm/4.8mm/6.0mm |
4c/6c/8c |
| T/C Jacket |
0.9mm |
|
| T/C Color |
Blue,Orange,Green,Red,Yellow,Violet
Brown,Black,White,Gray,Aqua,Pink |
Type1
Type2 |
| Strength Member |
Aramid yam |
|
| Ferrule |
Zirconia ceramic |
|
| Typical Loss |
<0.5dB |
|
| Return Loss |
≥40dB
≥60dB |
PC type
APC type |
| Operation temperature |
-30℃ to +50℃ |
|
| Installation Temperature |
10℃ to +45℃ |
|
| Connector Type |
SC,FC,ST,LC,MU |
|
|
|
 |
|
|
